Royal Mail Click & Drop label printer setup

Set up Royal Mail Click & Drop 6x4 label printing, fix PDF scaling, and avoid tiny or cut-off thermal labels.

·8 minutes reading
Cover Image for Royal Mail Click & Drop label printer setup

Royal Mail Click & Drop label printer setup should be simple: buy postage, download the label, print it on a 6x4 thermal printer, then pack the order.

The messy part is the handoff between Click & Drop, the downloaded PDF, your browser or PDF viewer, and the thermal printer driver. One wrong setting can turn a normal label into a tiny barcode in the corner, a sideways label, or a barcode clipped by a few millimetres.

This guide is for UK sellers who already use Royal Mail Click & Drop, or who are moving from A4 paper to a 6x4 thermal printer. It focuses on the PDF workflow, not on choosing a postage service.

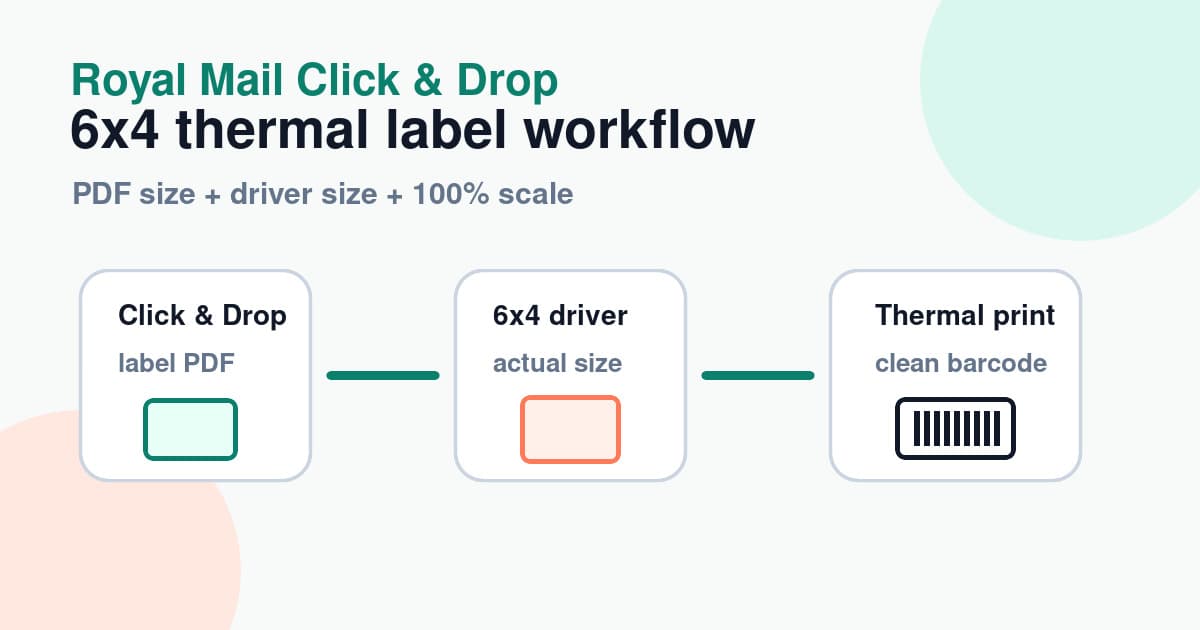

Royal Mail Click and Drop 6x4 thermal label workflow from PDF download to printer settings

In this article:

The clean Click & Drop thermal-printer workflow

A reliable Click & Drop label printer workflow has four matching parts:

  1. The label PDF is the right shape for a thermal label.
  2. The printer driver paper size matches the physical label stock.
  3. The print dialog uses actual size or 100 percent scale.
  4. The printer is calibrated so each label starts in the right place.

If all four agree, printing is boring. If one part disagrees, the printer usually gets blamed even though the file or print dialog caused the problem.

For a 6x4 thermal printer, your target is normally a 6x4 inch, 4x6 inch, 100x150mm or 102x152mm output. These names are used differently across printers and label suppliers, but they describe roughly the same shipping-label workflow.

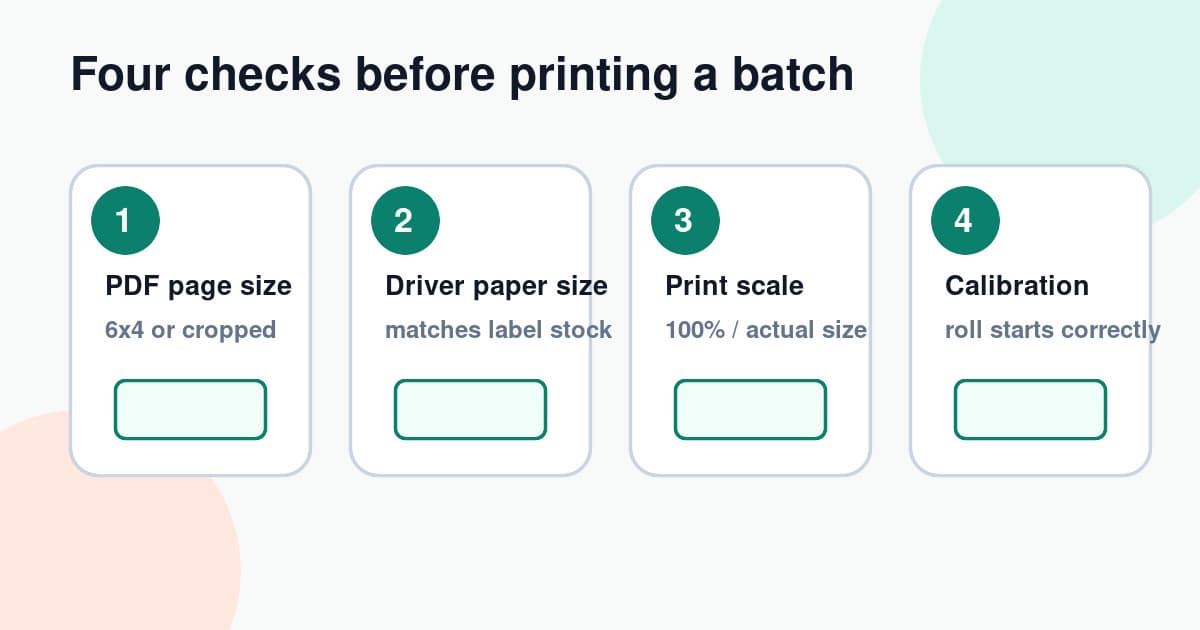

Four-step Click and Drop label printer workflow showing PDF size, driver size, print scale and calibration

If you are still comparing sizes, read the Royal Mail label size guide first. If you need the broader setup version, start with the Royal Mail label printer setup guide.

Check the label format before touching the printer

Before changing driver settings, open one downloaded Click & Drop PDF and check what kind of file you actually have.

You are looking for one of these cases:

| PDF type | What it means | What to do | |---|---|---| | A clean 6x4 page | Best case for thermal printing | Print at actual size on 6x4 stock | | A4 page with one label inside | Office-paper format | Crop or convert before thermal printing | | A4 page with multiple labels | Batch or sheet workflow | Split or crop only if your process supports it | | 6x4 page but label is sideways | Orientation mismatch | Fix orientation in the print dialog or driver | | Custom page size | Common with some export tools | Match the driver or convert to standard 6x4 |

Do this check once before a busy shipping session. It saves the classic mistake: sending a full A4 page to a 6x4 printer and wondering why the actual label comes out tiny.

Use native thermal output when available

If your Click & Drop or connected workflow offers a thermal, 6x4 or label-printer friendly format, use that first. A native thermal label is easier to print than an A4 label that needs fixing later.

Do not assume every PDF from the same account will behave the same forever. Browser changes, account settings, marketplace imports, international services and old downloads can all change what lands in your Downloads folder.

That is why the first diagnosis is the PDF page size, not the printer brand.

Set the printer driver to 6x4 or 100x150mm

Your operating system needs to know the label stock loaded in the printer.

For most Click & Drop thermal-printer workflows, set the driver paper size to one of these:

  • 6x4 inch
  • 4x6 inch
  • 100x150mm
  • 102x152mm
  • A custom size that exactly matches your roll or fanfold labels

The wording depends on the model. Dymo, Zebra, Brother, MUNBYN, Rollo and other thermal printers all expose paper size differently. The practical rule is the same: the driver size should match the physical label, not the A4 page you might have downloaded.

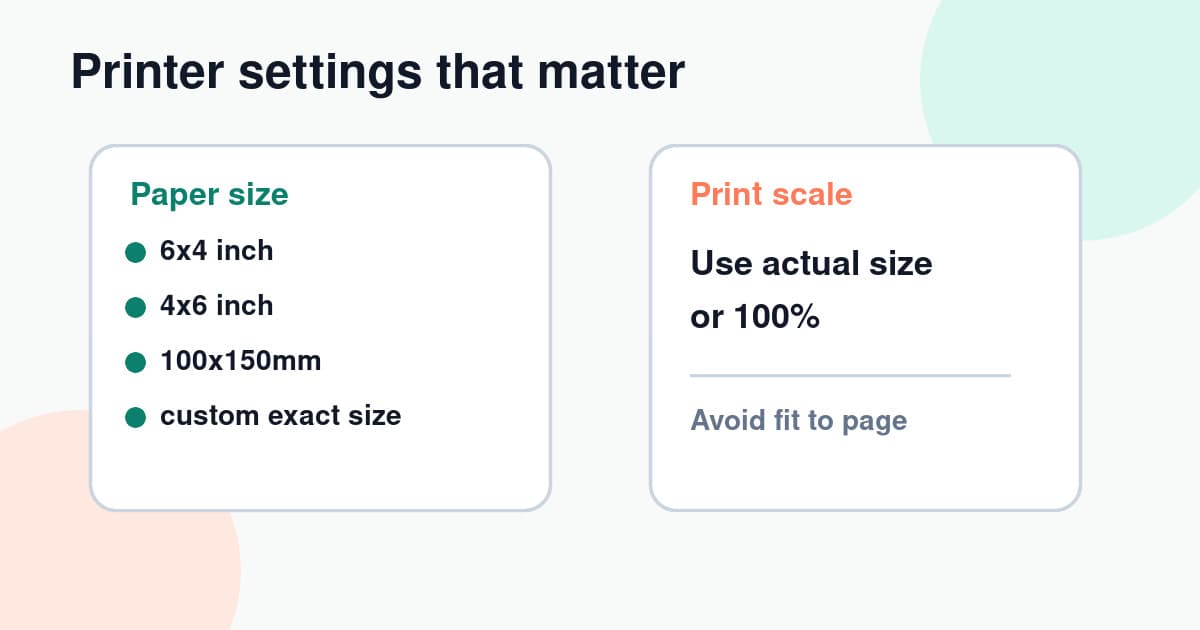

Printer settings panel illustration with 6x4 inch paper size, actual size scale and calibration reminder

Save defaults outside the browser

Set the paper size in the printer driver or operating-system printer preferences, rather than only inside Chrome, Edge, Acrobat or Preview.

Browser print dialogs can remember one job and forget another. Driver defaults are less exciting, but they reduce mistakes when you are printing labels every day.

After setting the driver default, print one test label. Check that the barcode is sharp, the address area is not clipped, and the next blank label starts at the right position.

For a true 6x4 Click & Drop PDF, use actual size or 100 percent scale.

Avoid these settings unless you know exactly why you need them:

  • Fit to page
  • Shrink to printable area
  • Scale to printable area
  • Fill entire page
  • Borderless enlargement
  • Automatic rotate and centre if it keeps changing the result

Those options are useful for office documents. Shipping labels need predictable barcode size and clean margins.

If the PDF is A4, actual size alone will not fix it. The thermal printer will still see a whole A4 canvas. You need to crop, split or convert the label area before printing to 6x4.

Fix tiny, cut-off or sideways Click & Drop labels

Most Click & Drop label printer problems fall into repeatable buckets. Work through the symptom, then change one setting at a time.

The label prints tiny

This usually means an A4 PDF is being shrunk down to fit a 6x4 label.

Fix it like this:

  1. Open the PDF and check the page size.
  2. If it is A4, do not print the whole page to the thermal printer.
  3. Crop or convert the label area to 6x4 output.
  4. Set the printer paper size to 6x4 or your exact metric label stock.
  5. Print at actual size after the PDF is correctly sized.

If this happens every day, the issue is not your hand technique. It is a workflow mismatch.

The barcode or address is cut off

Cut-off labels usually mean the PDF, driver and loaded stock do not agree.

Check these in order:

  • The driver paper size matches the roll
  • The print dialog is not enlarging the page
  • The label stock is loaded straight
  • The printer is calibrated after loading the roll
  • The PDF is not wider or taller than the driver paper size
  • The browser is not adding margins or headers

Do not ship a label with a clipped barcode. It may still move through the network, but you are adding scanning risk for no good reason.

The label prints sideways

Sideways printing is usually orientation confusion, not a broken printer.

A 6x4 label can be described as 6 inches by 4 inches, 4 inches by 6 inches, 100x150mm, or 150x100mm depending on whether the app lists width first or height first.

If the PDF page is already the correct size, try the alternate orientation in the print dialog. If the PDF is A4, crop first. Rotating a bad A4 canvas still leaves you with a bad A4 canvas.

Labels drift down the roll

Drift is usually calibration or sensor trouble.

Run the printer calibration routine after changing rolls, label size or label type. Check whether your printer expects gap labels, black-mark labels or continuous stock. Also make sure the side guides are not squeezing the roll and causing it to feed at an angle.

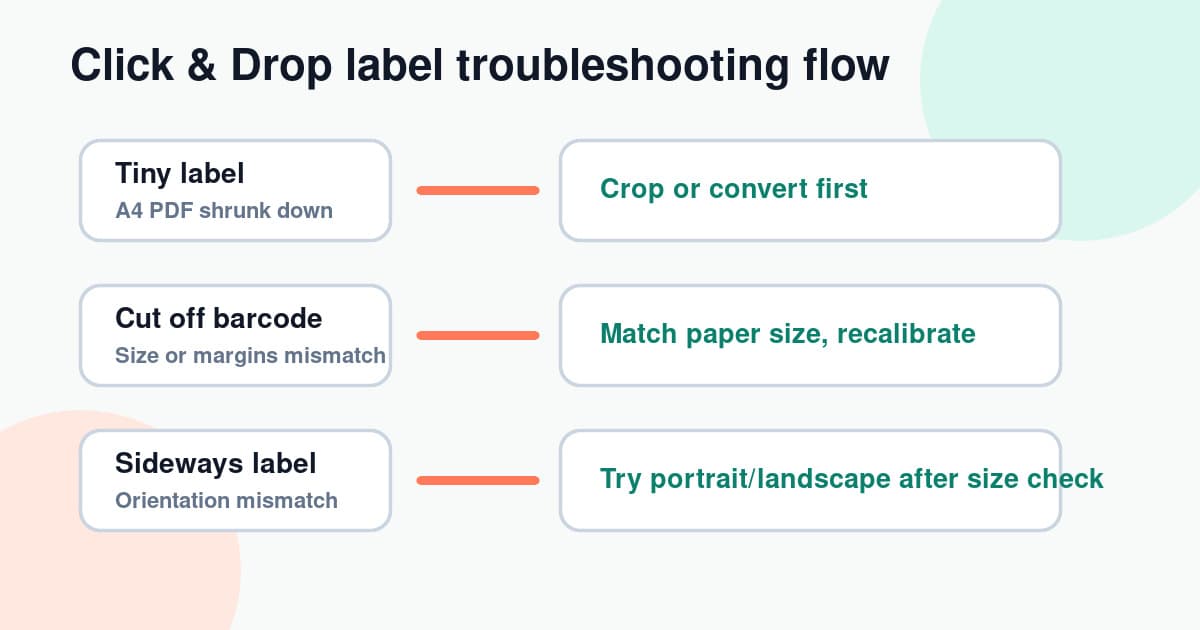

Troubleshooting flowchart for Click and Drop labels printing tiny, cut off, sideways or drifting on thermal rolls

Batch printing checklist for shipping days

Before printing a batch of orders, run one quick check. It is boring, but it prevents wasting half a roll.

Use this checklist:

  • Download one label and confirm the PDF page size
  • Confirm the printer default is 6x4, 4x6 or your exact metric size
  • Confirm scale is actual size or 100 percent
  • Print one label before the batch
  • Check the barcode, address block and edges
  • Recalibrate if the second label starts too high or low
  • Only then print the rest of the batch

Thermal printers are fast. That is good when settings are correct and expensive when settings are wrong.

When automatic PDF handling helps

Manual printing is fine if Click & Drop always gives you a clean 6x4 PDF and you print a few labels a week.

Automation starts to make sense when you repeat the same fixes:

  • Download the label
  • Open the PDF
  • Notice it is A4 or awkwardly sized
  • Crop or screenshot the label
  • Change printer settings
  • Print one test label
  • Fix the scale again tomorrow

LabelChop is built for that PDF handoff. It watches a folder, detects compatible shipping-label PDFs, crops or resizes awkward A4, Letter, A6, 4x6 and 100x150mm files, then prints or saves thermal-printer output.

It is not an official Royal Mail or Click & Drop integration. It helps with the PDF workflow after your carrier, marketplace or shipping tool has produced the label.

That distinction matters. You still buy postage and manage orders in Click & Drop. LabelChop helps when the downloaded PDF is the part slowing down the packing bench.

Keep these handy if you are still troubleshooting the label workflow:

If your test label prints correctly but your real Click & Drop PDFs still need cropping, the printer is probably not the main issue. Fix the PDF workflow, then lock the driver settings so every label follows the same path.
