A Zebra printer can be a solid USPS 4x6 label printer, but only when three things agree: the driver paper size, the physical label stock and the PDF page size.
If one of those is wrong, the printer gets blamed for everything. The label prints tiny. The barcode clips at the edge. The output rotates sideways. Or a clean USPS PDF turns into a fuzzy screenshot because the seller tried to resize it by hand.
This guide covers a practical Zebra USPS setup for ZD421, ZD220, GK420d and similar desktop direct thermal printers. It focuses on the seller workflow: driver setup, 4x6 stock, calibration, USPS or marketplace PDFs, 100 percent scale and when a PDF workflow tool like LabelChop makes sense. LabelChop helps with compatible USPS and marketplace PDF workflows, but it is not an official USPS or Zebra integration.
In this article:
- The quick Zebra USPS setup checklist
- Install the Zebra driver before testing USPS labels
- Set the Zebra paper size to 4x6 or 100x150mm
- Check whether the USPS PDF is 4x6 or Letter
- Print one label at actual size
- Fix common Zebra USPS label problems
- When LabelChop helps
- Related Zebra and USPS guides

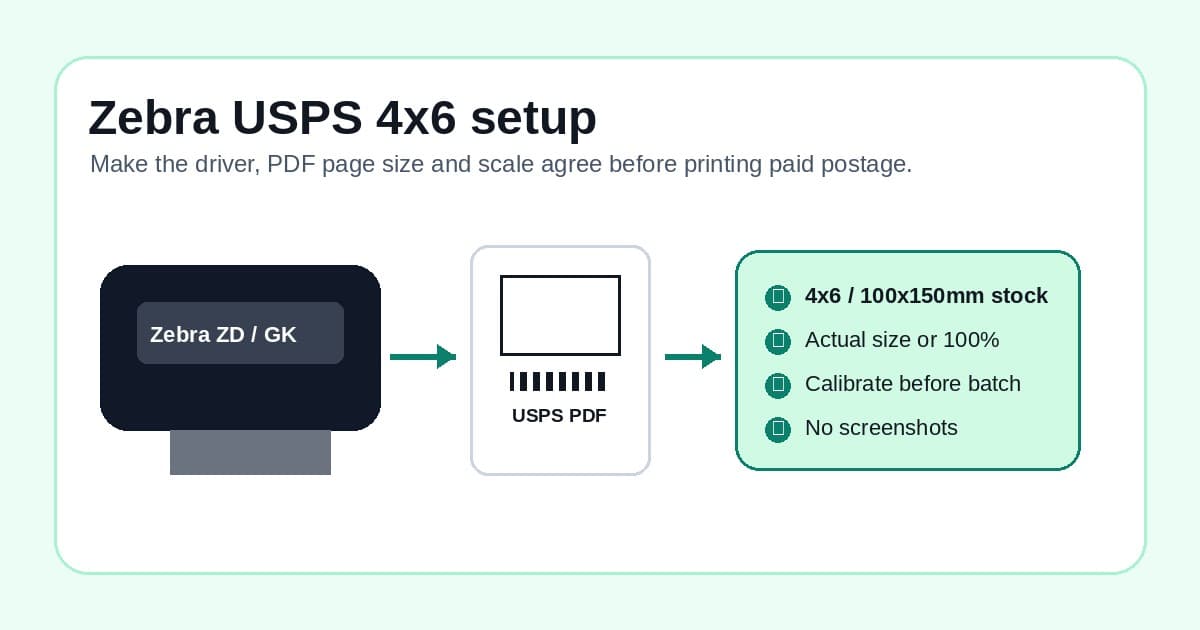

The quick Zebra USPS setup checklist
Use this order before printing paid postage.
- Install the correct Zebra driver for your model.
- Load direct thermal 4x6, 100x150mm or 102x152mm label stock.
- Set the media type to labels with gaps, web or gap sensing, depending on your driver wording.
- Set the paper size to match the real stock loaded in the printer.
- Calibrate the printer after loading or changing the roll.
- Download the USPS, Click-N-Ship, eBay, Shopify or Etsy label PDF.
- Check whether the PDF page is already 4x6 or still Letter.
- Print a correct 4x6 PDF at actual size or 100 percent.
- If the label is sitting inside a Letter page, crop or convert it before printing.
- Print one test label and inspect the barcode, margins and feed position.
That order keeps the printer problem separate from the PDF problem. USPS documents the postage side through online shipping and Click-N-Ship, but your Zebra printer still only sees a page size, scale choice and media preset.
If you want the non-Zebra version first, start with the broader USPS label printer setup guide. If you are choosing hardware, the best USPS label printer workflow checklist explains what matters before buying a printer.

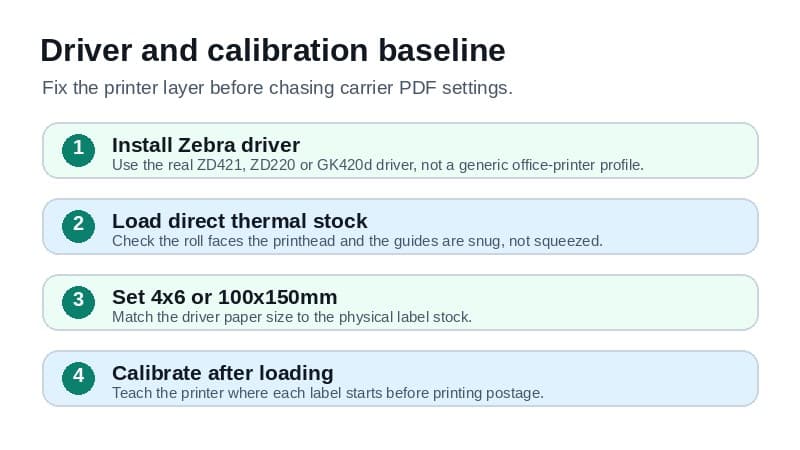

Install the Zebra driver before testing USPS labels
A Zebra printer may appear in Windows or macOS before the right presets are available. Do not trust the device list alone.
Install Zebra's current support software or printer driver for your exact model, then connect the printer and confirm the model name appears correctly. A generic thermal-printer driver can print something, but it may hide the paper-size, calibration, darkness and media options you need for clean 4x6 shipping labels.
After installing the driver, check these basics.
- Printer model is correct, such as ZD421, ZD220 or GK420d.
- Media type is direct thermal labels, not receipt paper.
- Print method is direct thermal unless your exact printer and stock use a ribbon.
- Paper size list includes 4 in x 6 in, 100x150mm, 102x152mm or a custom size you can create.
- The printer is online, not paused.
- The label roll feeds straight and the guides sit close to the label edges.
Then run calibration before printing postage. Calibration teaches the printer where each label starts and stops. It matters after a new roll, a different label brand, a size change or a printer that has been sitting unused.
Set the Zebra paper size to 4x6 or 100x150mm
For USPS 4x6 labels, set the Zebra driver to the physical label stock in the printer.
Do not choose Letter just because the downloaded USPS PDF is Letter. Do not choose A4 because the last job went to an office printer. Do not choose a tiny product-label preset from a previous workflow. The driver size should match the Zebra label roll, not the carrier page.
Use this baseline.
| Setting | Start with | Why it matters | |---|---|---| | Printer | Your Zebra model | Avoids sending the label to the wrong device | | Paper size | 4 in x 6 in, 100x150mm or 102x152mm | Matches common shipping-label stock | | Scale | Actual size or 100 percent | Stops shrinking, enlargement and barcode distortion | | Media type | Labels with gaps or web sensing | Helps the printer feed one label at a time | | Print method | Direct thermal | Matches most 4x6 shipping-label stock | | Calibration | Run after loading stock | Prevents drift and top or bottom clipping |
The small difference between 100x150mm and 4x6 inches can matter when the PDF has tight margins. If your stock is sold as 100x150mm, use that size when the driver allows it. If the driver only offers inches, use 4 in x 6 in and print one test before a batch.
The 4x6 shipping labels print settings guide explains the size names in more detail, including 4x6, 6x4, 100x150mm, 102x152mm, Letter, A4 and A6.

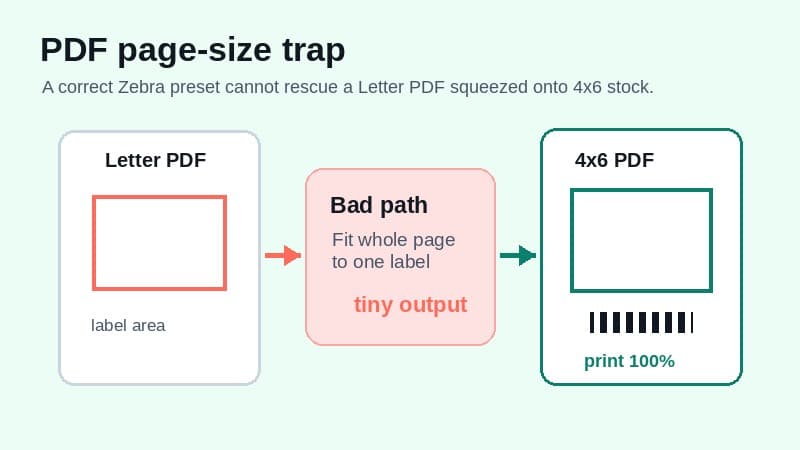

Check whether the USPS PDF is 4x6 or Letter
This is where many Zebra setup guides skip the painful bit.
Open the downloaded label before printing. Ask whether the whole PDF page is the shipping label, or whether the label sits inside a larger Letter page.
A true 4x6 PDF should map cleanly to one physical Zebra label when the driver is also set to 4x6. The barcode should have quiet space, the address should sit inside the label and the preview should show one label per page.
A Letter PDF is different. It may be perfectly valid for printing on office paper, but it is not ready to send straight to a Zebra loaded with 4x6 labels. If the print dialog shrinks the whole Letter page onto one label, the postage label itself becomes too small.
USPS has a public Click-N-Ship basics help page for the account and label-purchase flow. After the label exists, inspect the downloaded PDF. That file decides whether your Zebra driver can print directly or whether you need a crop or conversion step.
If the file is Letter, crop or convert the label area before printing. For a one-off PDF, use the free A4 to 4x6 shipping label converter. If you are not sure what size the file is, run it through the shipping label size checker before changing printer settings again.
Print one label at actual size
For a correct 4x6 PDF, the first test should use actual size, 100 percent scale or no scaling. The exact wording changes by app, but the goal is simple: one PDF page maps to one physical 4x6 label.
Turn off anything that tries to be clever.
- Fit to page
- Shrink oversized pages
- Scale to printable area
- Browser headers and footers
- Default browser margins
- Auto-rotate when the preview rotates the label incorrectly
Print one test label before the batch. Check the barcode first. It should be sharp, complete and not pushed against an edge. Then check the address, sender details, label feed position and orientation.
If a neutral test label fails, fix the Zebra layer first: driver, stock, paper size, roll loading, media sensing or calibration. If the neutral test label works but USPS or marketplace PDFs fail, fix the PDF layer: page size, crop, orientation or scale.
For a safe test file before printing postage, use the 4x6 label test print troubleshooting guide or the thermal printer test label PDF.

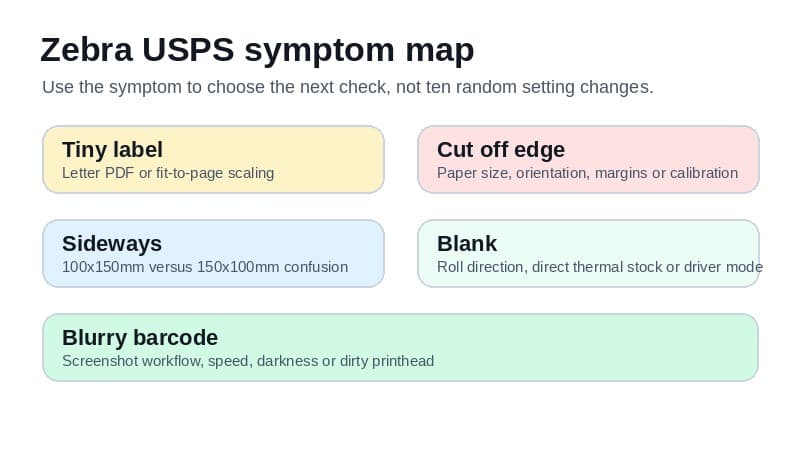

Fix common Zebra USPS label problems
Use the symptom to decide the next check. Randomly changing scale, darkness, offset and orientation together makes the next test harder to read.
The USPS label prints too small
This is usually a Letter PDF or fit-to-page scaling issue.
Open the PDF. If the page is Letter, crop or convert the postage label area before printing on the Zebra. If the PDF is already 4x6, turn off fit-to-page settings and print at 100 percent.
For a symptom-first walkthrough, use the shipping label printing too small guide or the live too-small diagnostic tool.
The barcode is cut off
A cut-off barcode usually points to paper size, orientation, margins, offset or calibration.
Set the Zebra paper size back to the physical stock. Check the preview. Run calibration. Print one test. If the preview is clean but the physical output clips at the same edge, check the roll guides and driver offsets before changing the PDF.
The shipping label cut-off troubleshooting guide goes deeper on edge clipping. The cut-off shipping label diagnostic is faster if you just want the next setting to check.
The label prints sideways
Sideways labels usually come from size naming and feed direction.
Some drivers describe a label as 4x6, others as 6x4. Some apps care about width first. Others care about portrait or landscape in the preview. Trust the preview more than the label-name wording.
If the PDF itself is rotated, fix the file or orientation before printing. If the PDF looks correct and the printer rotates it, change the driver orientation and print one test.
Blank labels feed through
Blank Zebra labels are usually a stock, roll direction, print method or calibration problem.
Check that the labels are direct thermal and loaded with the printable side facing the printhead. Run a printer self-test or configuration label. If the self-test is blank too, fix the Zebra hardware or stock layer before changing USPS settings.
Use the thermal printer blank labels checklist if every file feeds blank stock.
The barcode looks blurry
Avoid screenshots when possible.
A screenshot turns a sharp PDF into an image, then the print dialog may scale it again. That can soften barcode edges even when the Zebra printer is working. If the PDF page size is wrong, crop or convert the original PDF rather than pasting a screenshot into a document.
The blurry shipping label barcode guide covers DPI expectations, speed, darkness, dirty printheads and screenshot quality loss.
When LabelChop helps
LabelChop is not a Zebra driver, postage-purchase tool or official integration with USPS, Zebra, eBay, Shopify, Etsy or any carrier.
It sits before printing. LabelChop watches a folder, detects compatible shipping-label PDFs, crops or resizes awkward pages to 4x6 or 100x150mm output, then prints or saves the cleaned file for your normal thermal-printer workflow.
That helps when the Zebra itself is fine but the files keep changing. One USPS label may be native 4x6. A marketplace export may be Letter. A returns label may place the label in another corner of the page. If you repeat the crop, resize and print-dialog check most shipping days, the bottleneck is the PDF workflow.
For one-off files, use the free converter. For recurring Zebra output, compare the daily manual time cost with LabelChop pricing.
Related Zebra and USPS guides
Keep this Zebra setup connected to the rest of the workflow.
- USPS label printer setup, for the broader USPS 4x6 workflow.
- USPS Click-N-Ship 4x6 workflow, for downloaded USPS PDF checks.
- Best USPS label printer workflow checklist, for hardware criteria before buying.
- Dymo 4XL USPS setup, for the Dymo-specific version of the same workflow.
- Zebra Australia Post setup, for sellers using MyPost Business or Australia Post workflows.
- A4 to 4x6 shipping label converter, for awkward PDFs before printing.
Once the Zebra driver, label stock, PDF page and scale agree, the printer should become boring. Save the working preset, test one label after any workflow change and stop resizing USPS labels by screenshot.
